Cavern Remote user guide

Readme Setup Browser Controls Correction Projection Menus Pro Lights

Status


This field shows the playback state, the file name or title of the content playing (this can be configured in MPC-HC's settings), and has a link to the Browser.

Controls


Basic player controls:

  • Jump to previous file or chapter
  • Play
  • Pause
  • Stop
  • Jump to next file or chapter

Jump


Instant time jumps, configurable from MPC-HC:

  • Large jump back (default: -20 seconds)
  • Medium jump back (default: -5 seconds)
  • Medium jump forward (default: 5 seconds)
  • Large jump forward (default: 20 seconds)

Volume


Controls over MPC-HC's volume:

  • Mute with a text field showing if it's muted
  • Manual volume setting with a slider and apply button
  • Volume step down (-5%)
  • Volume step up (5%)

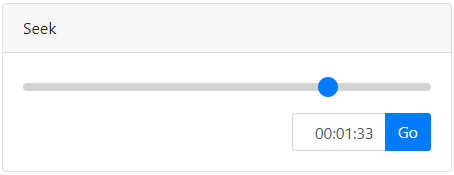

Seek


Manual playback position setting either on a slider or by manual input.

This is only an advertisement and keeps Cavern free.

Repeat


Content repeat control:

  • Enable/diable repeat
  • Repeat mode: single file
  • Repeat mode: entire folder/playlist
  • Set start point of A-B repeat
  • Set stop point of A-B repeat
  • Clear A-B repeat

Content


Audio and subtitle track controls.

Screen


Basic video scaling control:

  • 50% image size
  • 200% image size
  • Touch frame from inside (default)
  • Touch frame from outside (hides black bars)
  • Windowed mode
  • Full screen

Picture mode


Shader preset selection, which has to be manually configured first. A tutorial for this can be found in the installation instructions.

Sound mode


Equalizer APO configuration selection, which has to be manually configured first. A tutorial for this can be found in the installation instructions. This feature requires MPC-HC running with administrator privileges and a correctly set up CGI handler.
